Slim sliding doors meeting at an open corner, Panoramic House, Esher
Home/Doors/Aluminium/Slim sliding
Cortizo COR Vision · aluminium

A garden wall
of glass.

Up to 94% of the opening stays glass. Where two panes meet, a 20mm interlock is all you see.

01Structural glazing

The glass carries the room.

The glass is bonded into the sash and takes the load. That is how a frame this slim moves a panel of up to 320kg. The outer frame hides in the wall, so you live with the view, not the hardware.

Glazed area90 to 94% of the opening is glass.
ThermalUw from 1.3 W/m²K, down to 1.1 with upgraded glazing.
SecurityPAS24 tested options available.

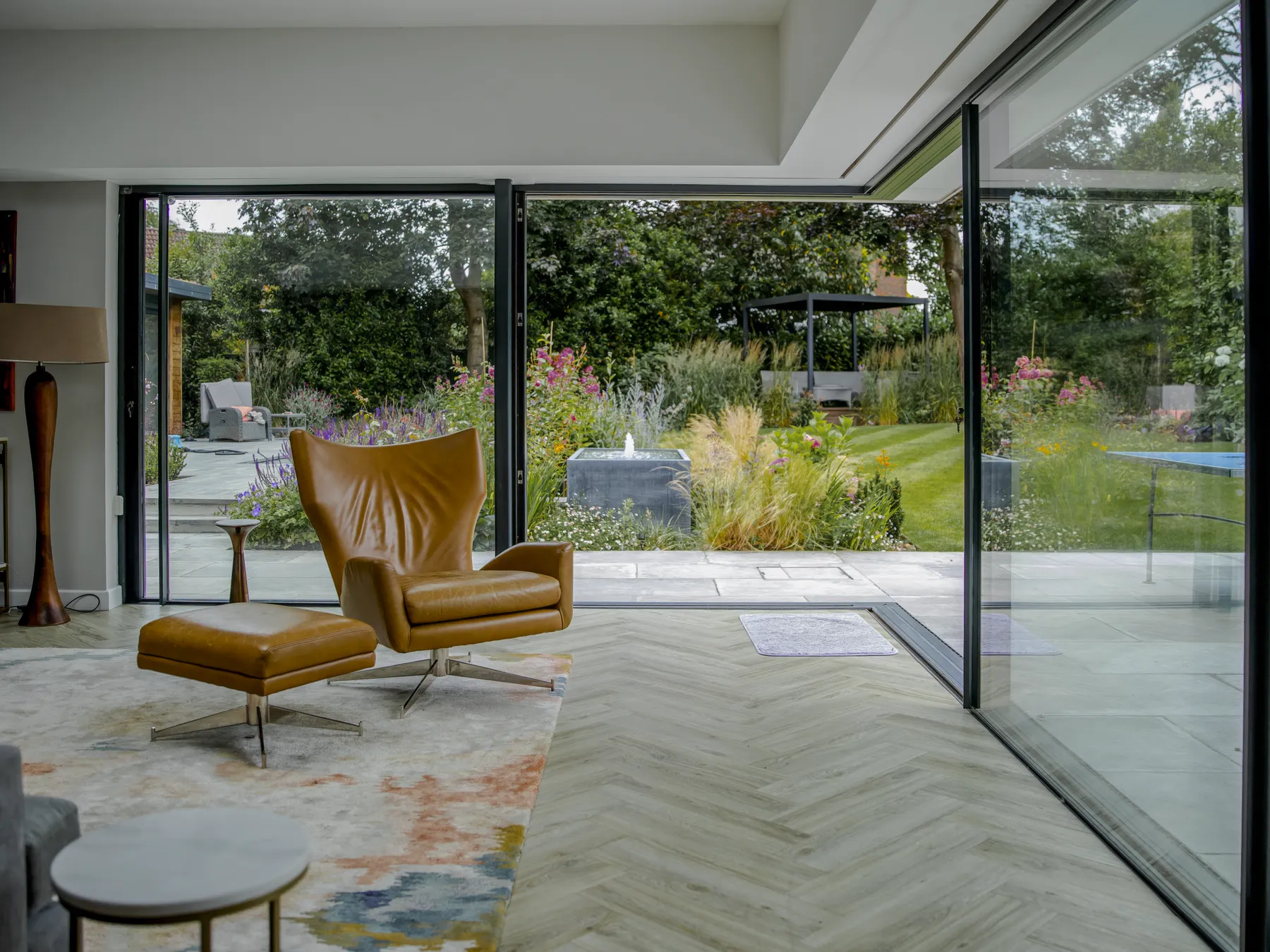

Living room in Esher opening onto the garden through slim sliding glass
02 · Aluminium
Panoramic House · Esher

More view.
Less frame.

Sliding sashes on a hidden outer frame. From the sofa, the garden is the wall.

03Built around your opening

Choose how the wall opens.

Every option is confirmed at survey, against your opening and your build stage.

PanoramicStraight run

Panoramic tracks

Two to six sashes. On a four-metre opening, one 20mm junction is all that breaks the glass.

  • Sashes2 to 6
  • TracksSingle to triple
  • Max sash2500 × 3000mm
CornerTwo sides open

Open corner

Two runs of glass meet at 90 degrees and slide away with no corner post. The room opens on two sides at once.

  • Corner postNone
  • Angle90°
See the Esher project
PocketPlan early

Pocket doors

The sashes slide into the wall and disappear. Decide at design stage, while the walls are still open.

  • Open sashesHidden in the wall
  • DecideAt first fix
Flush threshold · one level, inside to outCOR Vision Plus · panels to 4000 × 4000mm, in-frame automation
04Technical specification

Numbers first.

Cortizo COR Vision. Values depend on the glazing and configuration, and are confirmed at survey.

System
Cortizo COR Vision
Interlock sightline
20mm (Plus: 25mm)
Glazed area
90-94% of the opening
Thermal
Uw from 1.3 W/m²K (1.1 upgraded)
Acoustics
Rw up to 41dB
Weather rating
Class 4 air · 7A water · C5 wind
Max sash size
2500 × 3000mm
Max sash weight
320kg (Plus: to 700kg)
Frame depth
116mm double / 182mm triple track
Threshold
Flush or low, 10-15mm
Configurations
2-6 sashes, up to triple track
Finishes
Any RAL powder coat
05Fitted by one team

Glass walls we have already opened.

Panoramic House in Esher: an open corner, surveyed, supplied and fitted by our own team.

See our portfolio

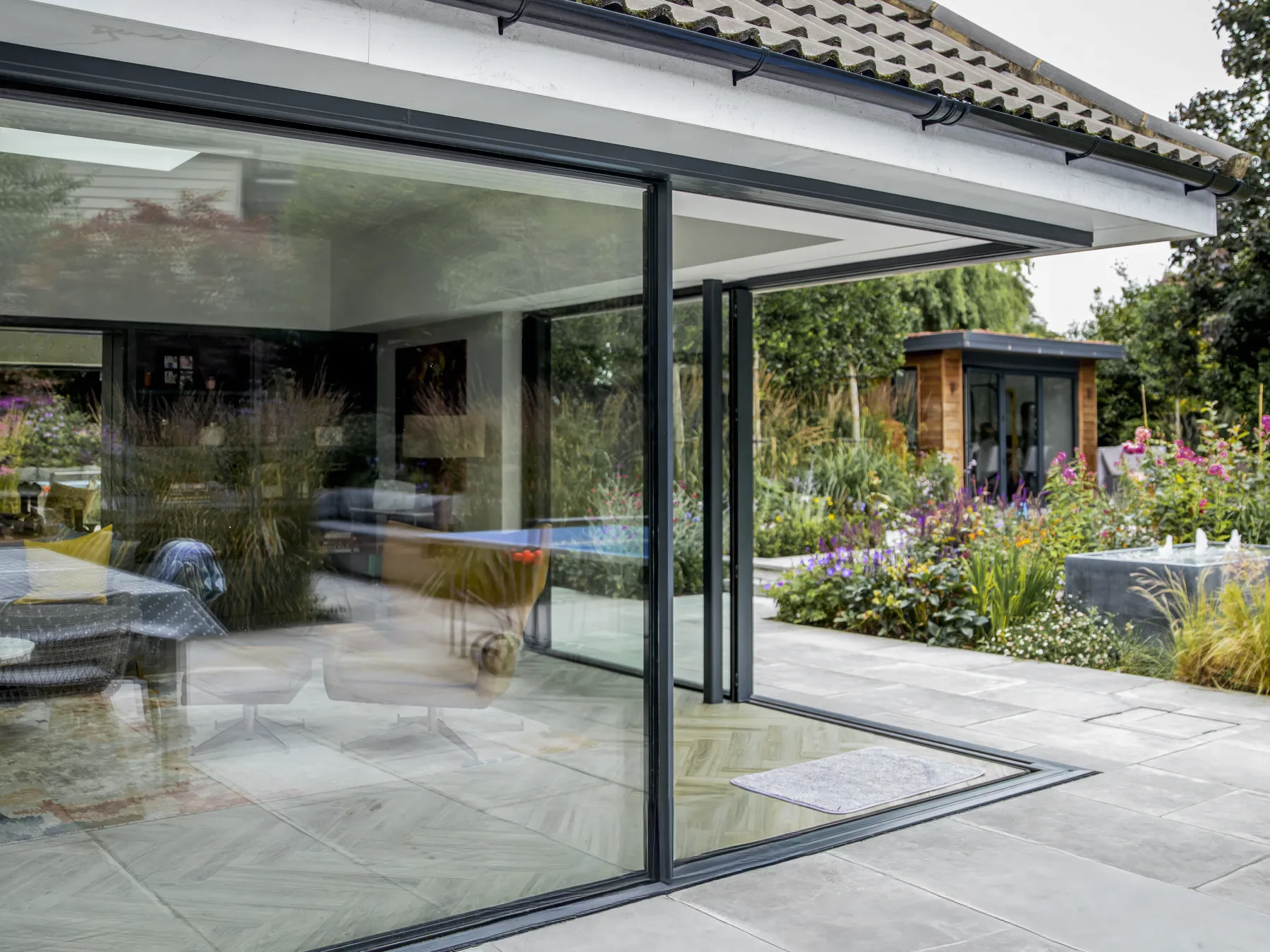

The open corner in Esher, two runs of sliding glass with no corner post
FEATURED
Case study · Esher KT10Panoramic House
The open cornerEsher, Surrey

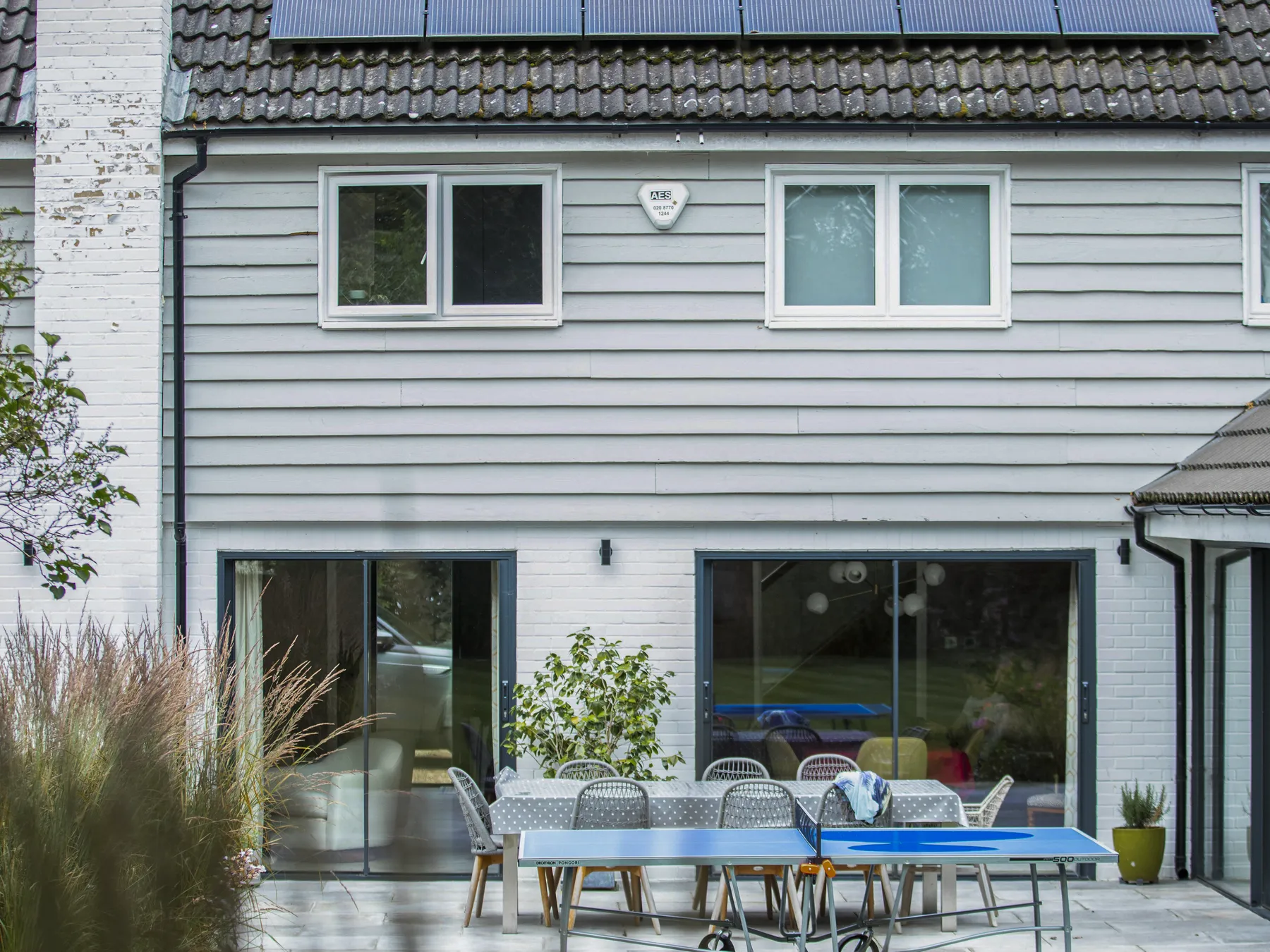

Garden elevation of Panoramic House, Esher, with slim sliding doors
Garden elevationEsher, Surrey

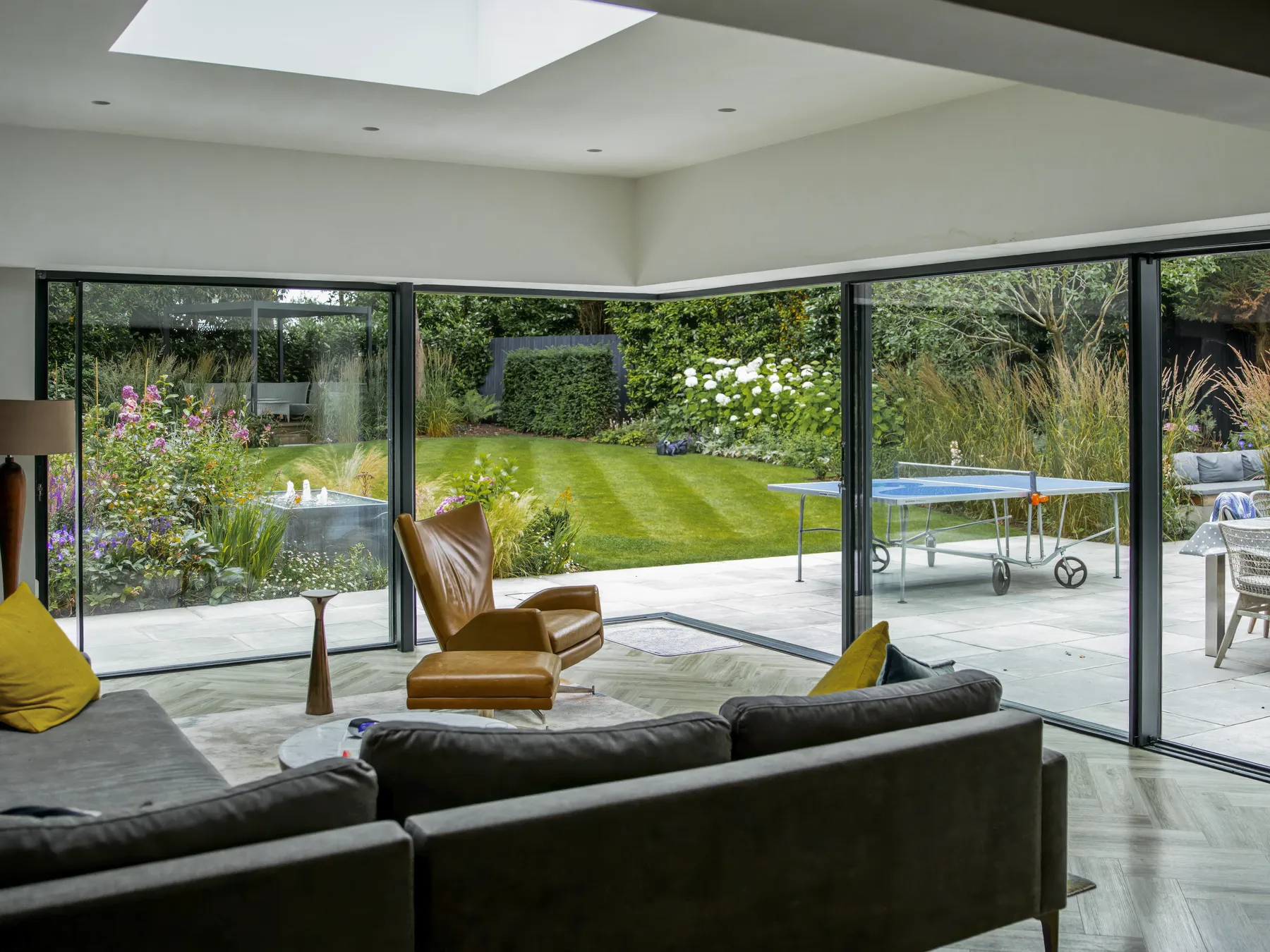

View from the living space through slim sliding glass to the garden
From the living spaceEsher, Surrey

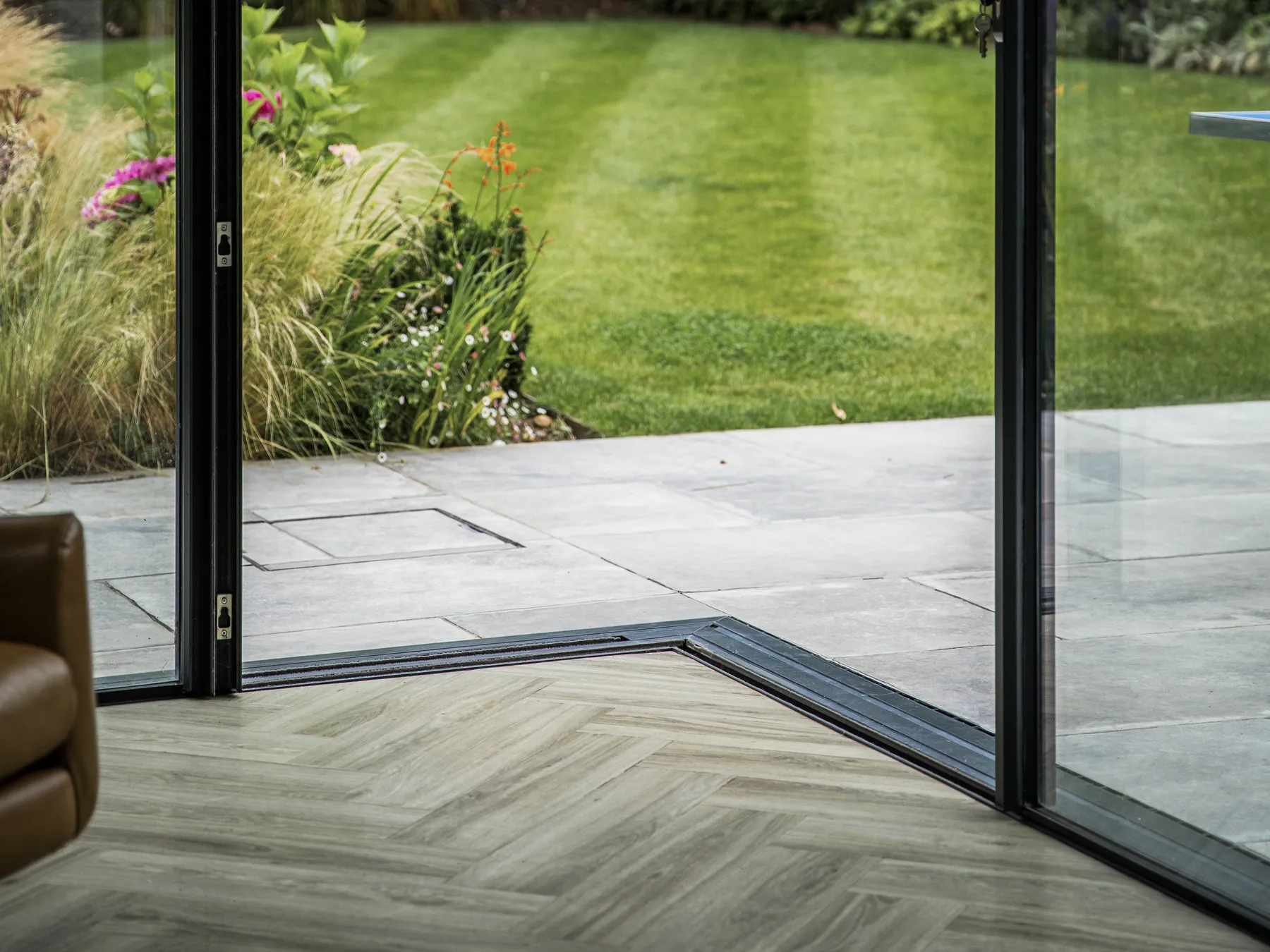

Sliding doors open flush to the lawn
Flush to the lawnEsher, Surrey

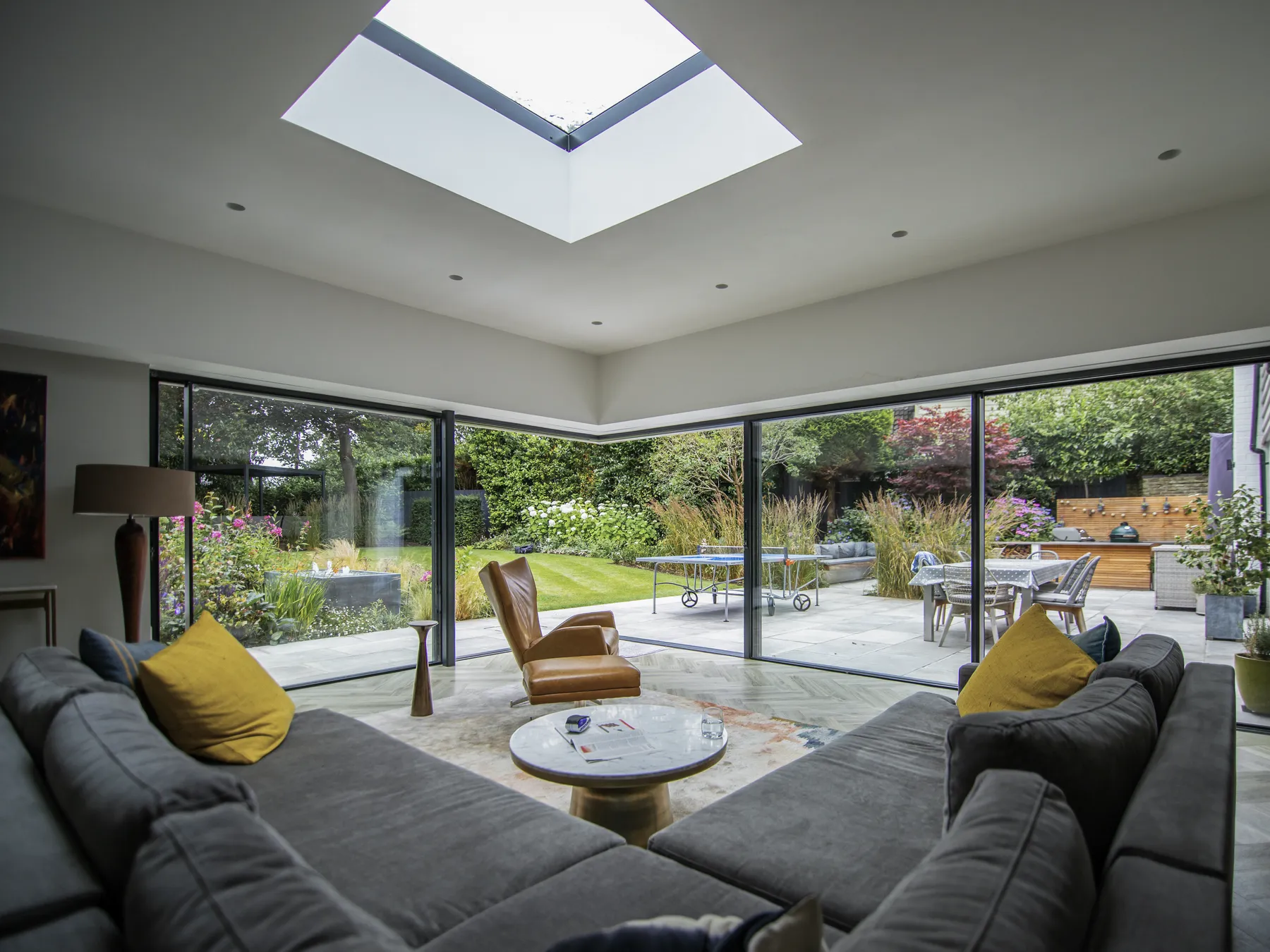

Living room under a rooflight, framed by slim sliding glass
Under the rooflightEsher, Surrey
Slim sliding doors behind a walk-on glass floor
Over a glass floorRear extension
The full project

One house, one team,
a garden wall of glass.

See the Esher project
06Supply and fit

One team, start to finish.

We survey, supply and fit with our own team. No gap between a supplier and a fitter for a problem to fall into.

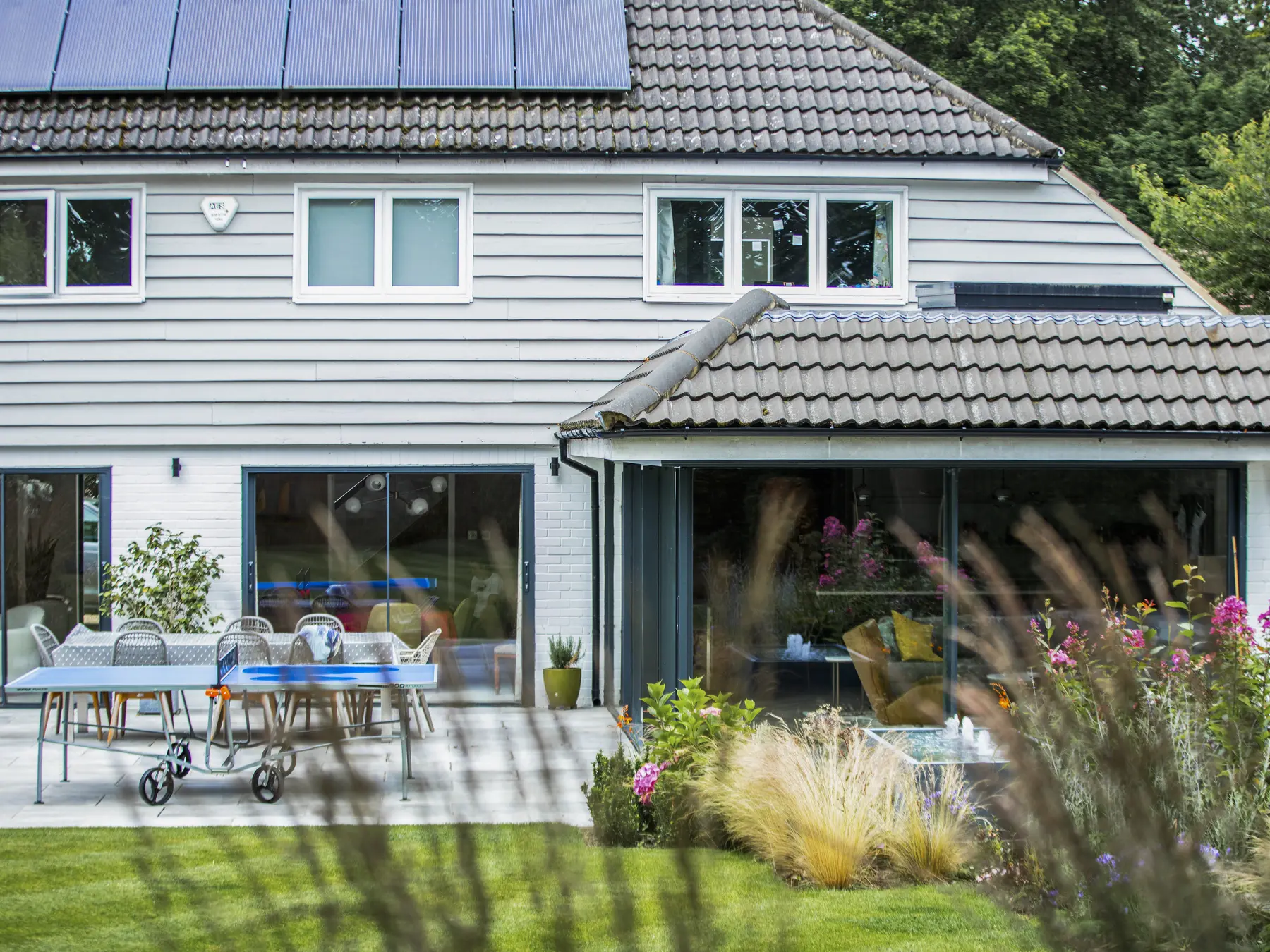

Rear of Panoramic House, Esher, with sliding glass across the garden elevation
01 · SURVEY

We measure the opening

Before anything is ordered. Track, threshold and drainage are decided here, not on fitting day.

Flush or low threshold

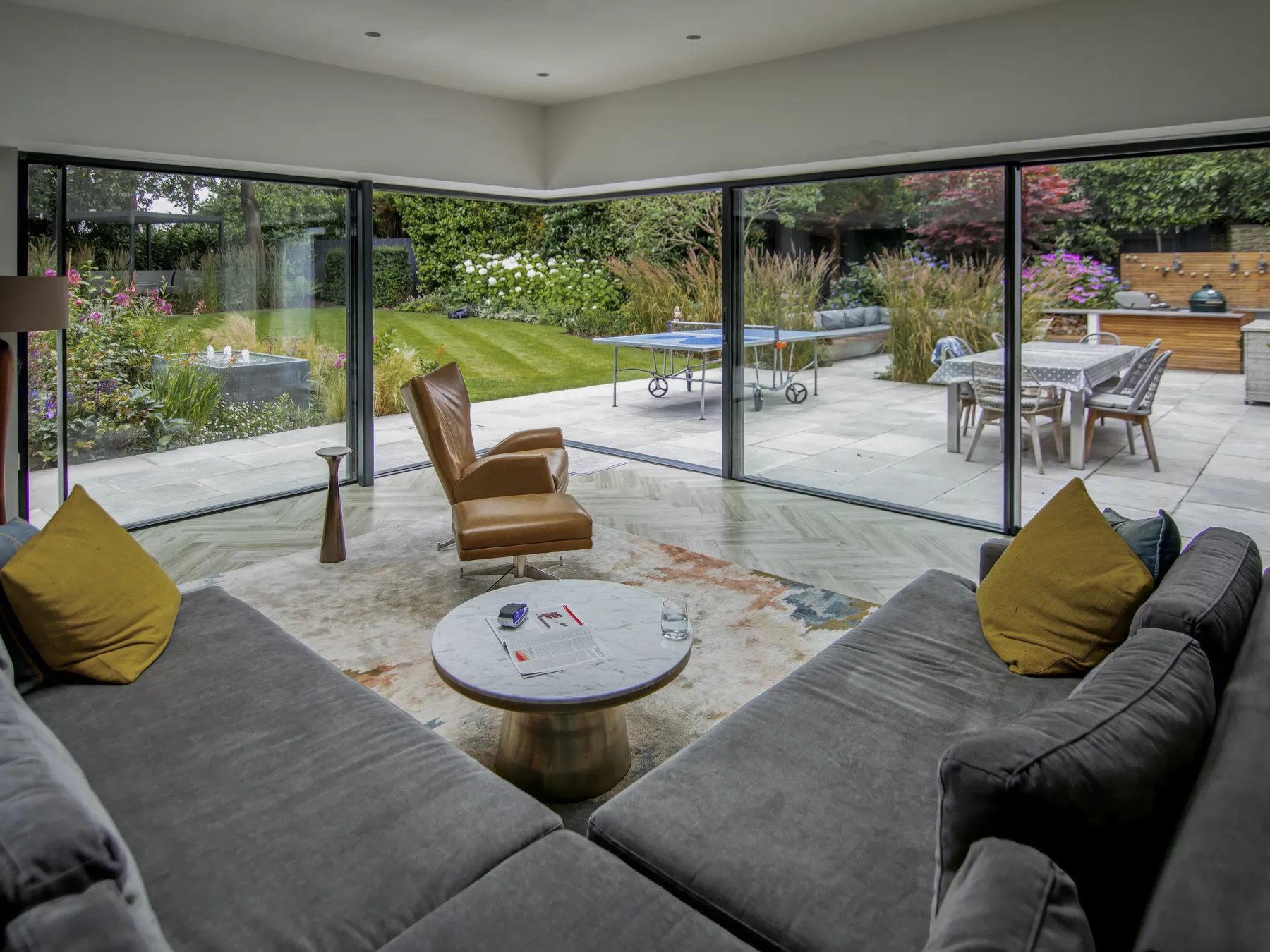

Corner seating looking out through slim sliding glass
02 · RENDER

You see it first

A render of the finished result before you commit. You decide on your room, not on a brochure page.

Before you commit

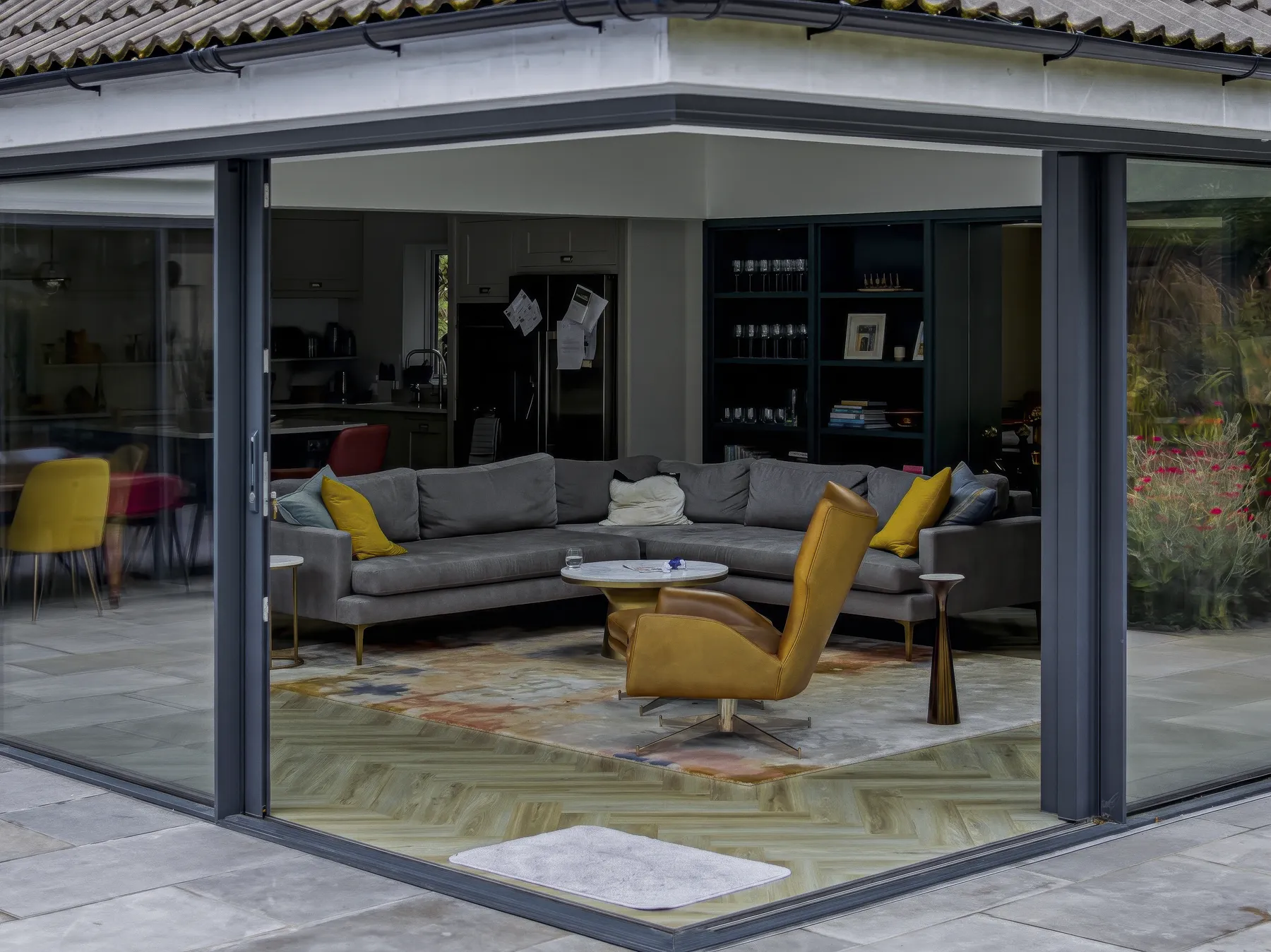

Open corner sliding doors seen from the garden
03 · FIT

We fit it ourselves

Our own fitters install frame, glass and drainage. One company answers for all of it.

One team, start to finish

Building for a client? One supply and fit team for your timeline.

Trade and builder enquiries
07Asked before every survey

The questions that matter.

How wide can one sliding panel be?
Up to 2500mm wide and 3000mm tall, at up to 320kg per sash. For everyday manual sliding we usually advise around 2 to 2.2 metres per panel. Larger panels go on COR Vision Plus with in-frame automation.
Is a 20mm frame actually secure?
Yes. PAS24 tested options available: multipoint shootbolt locking, a 3-star cylinder, anti-lift devices in the track and laminated glass. The slim sightline comes from structural glazing, not from removing security hardware.
Will a wall of glass make the room cold?
No. A glass-fibre thermal break, low-E coating, argon fill and warm-edge spacers give Uw from 1.3 W/m²K, down to 1.1 with upgraded glazing, inside Building Regulations Part L. In winter the glass also collects free solar gain.
Does a flush threshold cope with UK rain?
Done properly, yes. A flush track needs a concealed drainage channel and membrane beneath it, and that is part of our fit. Where site drainage is limited, a low 10-15mm threshold keeps the water rating at Class 7A, tested at 300 Pa.
Who is responsible if something goes wrong?
One company. We survey, supply and fit with our own team, so there is one number to call.
08Start here

Start with a conversation.

  • A render of the finished result before you commit
  • Showroom in Ruislip, opposite Ruislip Manor station, with parking
  • One team from survey through to installation
